Tensorflow CAPTCHA solver final part

In this tutorial, we will grab all CAPTCHA symbols, check the order of them, detection accuracy, and overlapping, and use these components to write the final out-of-the-box CAPTCHA solver.

# Welcome to CAPTCHA break tutorial !

# Imports
import cv2
import numpy as np
import os
import sys
# run on CPU, to run on GPU comment this line or write '0'
os.environ['CUDA_VISIBLE_DEVICES'] = '-1'
import tensorflow as tf
from distutils.version import StrictVersion
from collections import defaultdict

# title of our window
title = "CAPTCHA"

# Env setup
from object_detection.utils import ops as utils_ops
from object_detection.utils import label_map_util
from object_detection.utils import visualization_utils as vis_util


# Model preparation
PATH_TO_FROZEN_GRAPH = 'CAPTCHA_frozen_inference_graph.pb'
# List of the strings that is used to add correct label for each box.
PATH_TO_LABELS = 'CAPTCHA_labelmap.pbtxt'
NUM_CLASSES = 37


# Load a (frozen) Tensorflow model into memory.
label_map = label_map_util.load_labelmap(PATH_TO_LABELS)
categories = label_map_util.convert_label_map_to_categories(label_map, max_num_classes=NUM_CLASSES, use_display_name=True)
category_index = label_map_util.create_category_index(categories)

detection_graph = tf.Graph()
with detection_graph.as_default():
od_graph_def = tf.GraphDef()
with tf.gfile.GFile(PATH_TO_FROZEN_GRAPH, 'rb') as fid:
serialized_graph = fid.read()
od_graph_def.ParseFromString(serialized_graph)
tf.import_graph_def(od_graph_def, name='')


# Detection
def Captcha_detection(image, average_distance_error=3):
with detection_graph.as_default():
with tf.Session(graph=detection_graph) as sess:
# Open image
image_np = cv2.imread(image)
# Resize image if needed
image_np = cv2.resize(image_np, (0,0), fx=3, fy=3)
# To get real color we do this:
image_np = cv2.cvtColor(image_np, cv2.COLOR_BGR2RGB)
# Expand dimensions since the model expects images to have shape: [1, None, None, 3]
image_np_expanded = np.expand_dims(image_np, axis=0)
# Actual detection.
image_tensor = detection_graph.get_tensor_by_name('image_tensor:0')
boxes = detection_graph.get_tensor_by_name('detection_boxes:0')
scores = detection_graph.get_tensor_by_name('detection_scores:0')
classes = detection_graph.get_tensor_by_name('detection_classes:0')
num_detections = detection_graph.get_tensor_by_name('num_detections:0')
# Visualization of the results of a detection.
(boxes, scores, classes, num_detections) = sess.run(
[boxes, scores, classes, num_detections],
feed_dict={image_tensor: image_np_expanded})
vis_util.visualize_boxes_and_labels_on_image_array(
image_np,
np.squeeze(boxes),
np.squeeze(classes).astype(np.int32),
np.squeeze(scores),
category_index,
use_normalized_coordinates=True,
line_thickness=2)
# Show image with detection
#cv2.imshow(title, cv2.cvtColor(image_np, cv2.COLOR_BGR2RGB))
# Save image with detection
cv2.imwrite("Predicted_captcha.jpg", cv2.cvtColor(image_np, cv2.COLOR_BGR2RGB))


# Bellow we do filtering stuff
captcha_array = []
# loop our all detection boxes
for i,b in enumerate(boxes[0]):
for Symbol in range(37):
if classes[0][i] == Symbol: # check if detected class equal to our symbols
if scores[0][i] >= 0.65: # do something only if detected score more han 0.65
# x-left # x-right
mid_x = (boxes[0][i][1]+boxes[0][i][3])/2 # find x coordinates center of letter
# to captcha_array array save detected Symbol, middle X coordinates and detection percentage
captcha_array.append([category_index[Symbol].get('name'), mid_x, scores[0][i]])

# rearange array acording to X coordinates datected
for number in range(20):
for captcha_number in range(len(captcha_array)-1):
if captcha_array[captcha_number][1] > captcha_array[captcha_number+1][1]:
temporary_captcha = captcha_array[captcha_number]
captcha_array[captcha_number] = captcha_array[captcha_number+1]
captcha_array[captcha_number+1] = temporary_captcha


# Find average distance between detected symbols
average = 0
captcha_len = len(captcha_array)-1
while captcha_len > 0:
average += captcha_array[captcha_len][1]- captcha_array[captcha_len-1][1]
captcha_len -= 1
# Increase average distance error
average = average/(len(captcha_array)+average_distance_error)


captcha_array_filtered = list(captcha_array)
captcha_len = len(captcha_array)-1
while captcha_len > 0:
# if average distance is larger than error distance
if captcha_array[captcha_len][1]- captcha_array[captcha_len-1][1] < average:
# check which symbol has higher detection percentage
if captcha_array[captcha_len][2] > captcha_array[captcha_len-1][2]:
del captcha_array_filtered[captcha_len-1]
else:
del captcha_array_filtered[captcha_len]
captcha_len -= 1

# Get final string from filtered CAPTCHA array
captcha_string = ""
for captcha_letter in range(len(captcha_array_filtered)):
captcha_string += captcha_array_filtered[captcha_letter][0]

return captcha_string
To use above code, we can insert "print(Captcha_detection("10.jpg"))" line or we can call this function from another file. So I created a new python script called "main_.py" and wrote following lines to it. This way we will try to solve "10.jpg" CAPTCHA:
from CAPTCHA_object_detection import *

print(Captcha_detection("10.jpg"))

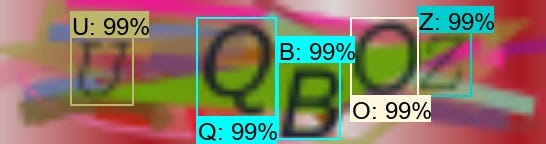

Returned result: UQBOZ

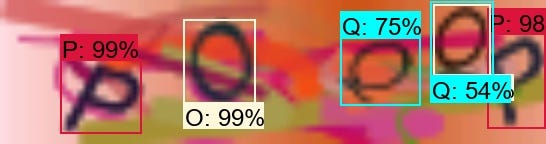

Returned result: POQQP

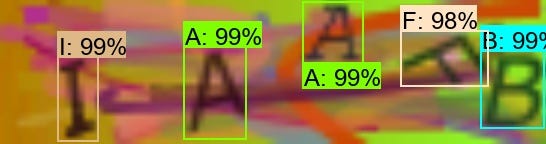

Returned result: IAAFB
