# Deep Neural Networks Backward module

## In this part, we will implement the backward function for the whole network and we will also update the parameters of the model, using gradient descent

**L-Model Backward module:**

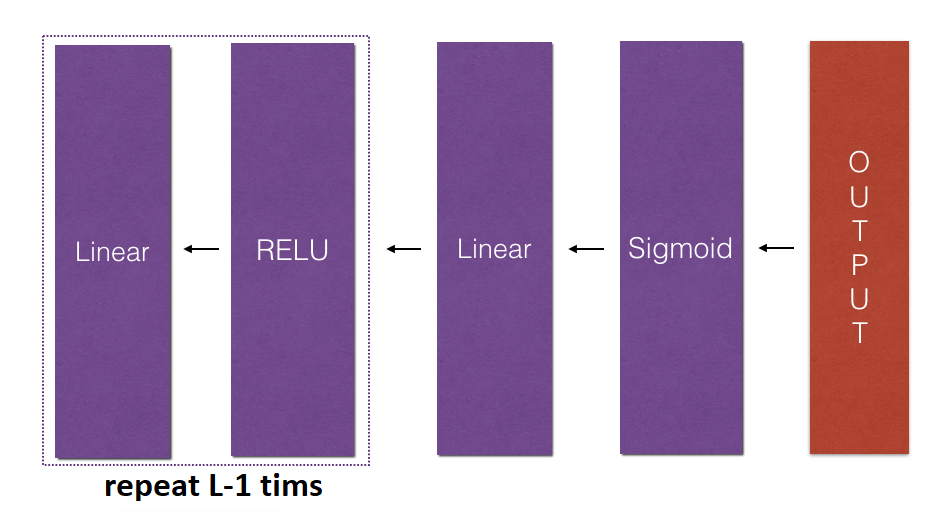

In this part, we will implement the backward function for the whole network. Recall that when we implemented the L_model_forward function, we stored a cache containing a cache at each iteration (X, W, b, and z). In the backpropagation module, we will use those variables to compute the gradients. Therefore, in the L_model_forward function, we will iterate through all the hidden layers backward, starting from layer L. In each step, we will use the cached values for layer l to backpropagate through layer l. The figure below shows the backward pass.

To backpropagate through this network, we know that the output is:

Our code needs to compute:

To do so, we’ll use this formula (derived using calculus which you don’t need to remember):

We can then use this post-activation gradient **dAL** to keep going backward. As seen in the figure above, we can now feed in dAL into the LINEAR->SIGMOID backward function we implemented (which will use the cached values stored by the `L_model_forward`

function). After that, we will have to use a for loop to iterate through all the other layers using the LINEAR->RELU backward function. We should store each dA, dW, and db in the grads dictionary. To do so, we'll use this formula:

For example, for **l=3** this would store **dW[l]** in **grads[“dW3”]**.

**Code for our linear_backward function:**

**Arguments**:

AL — probability vector, the output of the forward propagation `L_model_forward()`

;

Y - true "label" vector (containing 0 if non-cat, 1 if cat);

caches - list of caches containing:

1. every cache of `linear_activation_forward()`

with "relu" (it's caches[l], for l in range(L-1) i.e l = 0...L-2);

2. the cache of `linear_activation_forward()`

with "sigmoid" (it's caches[L-1]).

**Return**:

grads — A dictionary with the gradients:

grads[“dA” + str(l)] = …

grads[“dW” + str(l)] = …

grads[“db” + str(l)] = …

**Update Parameters module:**

In this section, we will update the parameters of the model using gradient descent:

here **α** is the learning rate. After computing the updated parameters, we’ll store them in the parameters dictionary.

**Code for our update_parameters function:**

**Arguments**:

parameters — python dictionary containing our parameters.

Grads — python dictionary containing our gradients, output of L_model_backward.

**Return**:

parameters — python dictionary containing our updated parameters:

parameters[“W” + str(l)] = …

parameters[“b” + str(l)] = …

**Conclusion**:

Congrats on implementing all the functions required for building a deep neural network. It was a long tutorial, but from now on, it will only get better. We’ll put all these together to build An L-layer neural network (deep) in the next part. In fact, we’ll use these models to classify cat vs. dog images.
